Custom unary force model

Before you start

Make sure you have the following:

• A cmake-based C++ project

• Proper compiler flags are set in the CMakeLists.txt file (see installation)

• You have completed the example simulation tutorial

Defining a custom unary force

In this section, we will define a custom unary force model in a header file inside your project. This model will later be used by a driver program in a simulation.

1. Using the same environment as in the example simulation tutorial, create a header file named central_attraction.h and add include guards to it:

   #ifndef CENTRAL_ATTRACTION_H #define CENTRAL_ATTRACTION_H /* Code will go here */ #endif //CENTRAL_ATTRACTION_H

2. Now, between the include guards, add the template declaration:

   template<typename field_value_t, typename real_t> struct central_attraction_functor { };

   The template parameter field_value_t is the type of the primary field (like Eigen::Vector3d or Eigen::Vector3f) and the parameter real_t is the type of a real-valued scalar value (like double or float).

3. Now, we will implement a constructor. In order compute accelerations, we need to know r, k_a, and m. We will also need to know the zero value of the primary field. Inside the struct, declare the private member constants and the constructor. The constructor only initializes the member constants:

   central_attraction_functor(real_t r, real_t k_a, real_t mass, field_value_t zero_field) : r(r), k_a(k_a), mass(mass), zero_field(zero_field) {} private: const real_t r, k_a, mass; const field_value_t zero_field; field_value_t x0;

   In your struct, after the constructor and before the private keyword, add:

   std::pair<field_value_t, field_value_t> operator () (size_t i, std::vector<field_value_t> const & x, std::vector<field_value_t> const & v [[maybe_unused]], std::vector<field_value_t> const & theta [[maybe_unused]], std::vector<field_value_t> const & omega [[maybe_unused]], real_t t [[maybe_unused]]) const { /* Compute and return the accelerations */ }

   This lengthy statement is the signature of operator () - the function that will be called by the integrator to compute the acceleration acing on particle i due to its linear attraction to the center of mass of the granular system. The arguments are: index of particle i,, position buffer, velocity buffer, orientation buffer, angular velocity buffer, and time. All these arguments must be accepted by the operator () function even if they are not used. In case an argument is not used, it should be marked with the [[maybe_unused]] attribute to avoid causing compiler warnings.

4. Acceleration can be computed with the following equation:

   To implement this computation, add inside your operator ():

   field_value_t a = k_a / mass * (x[i] - x0); // Compute the central acceleration return std::make_pair(a, zero_field); // Return the translational and angular accelerations

5. At every time step, the center of mass needs to be re-computed as it may shift with the evolution of the system. We do not want to compute the center of mass directly in the body of operator () because that computation would be done for every particle. We only want the center of mass to be re-computed once per time step. We will define an update_center_of_mass() method, which will need to be called by the driver program at every time step. Inside your struct before the private keyword, add:

   void update_center_of_mass(std::vector<field_value_t> const & x) { field_value_t x0_new = zero_field; for (auto const & point : x) { x0_new += point; } x0 = x0_new / real_t(x.size()); }

   Since we want to ensure that the central force model instance that we store in the driver program is the same instance that is being used in the granular system object (otherwise updating the center of mass will have no effect on the simulation), it is a good idea to delete the copy constructor of central_attraction_functor to prevent unintentional copies. In your struct, add:

   central_attraction_functor(central_attraction_functor const &) = delete;

Driver program for this model

In this section of the tutorial, we provide a driver program that can be used to test the custom force model defined in the previous section. For more details about driver programs, refer to the example simulation tutorial.

1. In this simulation, we will be using a fractal aggregate as the initial geometry for the simulation. Copy the aggregate.h file, as defined below, into your project. This file contains initial coordinates of particles normalized by particle radius and will be included in the driver program to set up the initial position buffer.

   #ifndef AGGREGATE_H #define AGGREGATE_H constexpr double aggregate[][3] = { 5.381048, 18.483654, 5.143242, 5.949202, 16.941475, 6.282927, 6.522552, 19.743778, 4.090125, 4.254210, 20.535814, 4.447582, 3.061821, 20.474491, 2.843072, 4.059029, 19.564165, 6.184764, 1.961491, 22.027952, 3.456290, 4.100143, 16.437365, 6.854641, 8.205635, 20.156048, 3.091492, 8.266253, 20.484835, 5.063351, 9.585005, 19.294472, 1.927438, 9.182722, 21.896002, 2.957845, 10.888521, 21.026497, 3.535957, 0.298204, 13.117410, -3.956084, -1.850106, 10.994704, -0.392680, -0.157987, 10.679225, 0.625754, -2.152361, 10.906271, -2.367730, -0.440803, 11.384176, -3.285434, -2.186500, 11.783336, -4.176061, 1.443839, 14.256097, -2.776716, 0.293551, 12.450349, 1.437687, -2.130326, 16.880444, 2.636410, -0.960546, 15.313308, 3.055574, 0.426633, 16.545813, 3.801675, 1.009729, 16.275637, 5.695614, 2.422916, 17.210443, 4.633050, 2.095561, 18.965055, 3.730735, 1.240510, 20.379923, 4.856364, 2.820676, 15.253491, 4.522942, 3.315668, 14.109584, 6.087059, 2.162122, 12.846807, 7.123750, -1.178428, 13.457395, 2.342753, -1.954622, 14.948363, 1.258995, -2.105695, 11.862226, 3.114516, -3.326299, 14.136928, 0.050659, -4.645139, 11.413218, 2.226980, -6.326225, 12.281743, 1.579208, -7.691842, 11.562547, 0.307262, -3.592058, 11.337117, 0.528383, 3.433121, 1.539043, -1.650279, 3.214089, -0.063356, -2.826862, 2.581532, 2.291854, -3.295901, 1.107985, 3.338170, -2.439232, -0.651946, 2.841426, -3.249099, 3.702398, 2.006700, -7.527482, 2.479157, 4.073030, -4.199743, 3.837380, 5.696042, -6.078282, 2.305369, 4.413163, -6.162930, 2.603780, 3.617363, -7.973360, 2.595674, 2.119801, -9.298969, 4.004651, -0.764775, 6.374567, 4.431592, -1.264468, 4.485642, 4.255418, 0.571209, 3.711526, 3.228247, 1.314791, 2.164913, 1.164471, 0.713804, 4.137331, 1.859790, 2.339574, 3.202768, -0.435625, -0.397126, 3.683978, 3.454807, 1.993493, 0.297285, -3.619100, 1.481467, -1.152247, -2.618960, 1.530801, 0.579020, -0.225961, -1.293818, 0.275802, -2.165546, -1.756202, 0.120204, 0.382767, 0.640474, 2.182770, -0.865854, 0.569151, 0.622046, 2.572918, -7.939448, 1.429085, 1.021404, -8.169539, 2.669998, 4.336183, -8.941447, 2.506176, 4.491859, -7.414514, 1.223896, 9.602220, -7.352553, 2.891611, 6.242034, -9.460876, 2.819118, 7.920323, -8.041297, 4.601250, 7.872787, -8.320031, 2.621339, 7.614533, -11.089431, 5.461537, 6.889518, -11.184531, 3.600003, 5.142938, -11.849626, 4.312113, 8.887940, -5.485045, 2.938691, 7.860165, -3.887006, 4.323622, 6.701442, -2.581828, 2.096128, 8.379007, -3.624541, 2.410009, 5.009143, -2.646241, 3.160069, 0.546897, -7.253179, -0.813710, 2.084806, -6.452823, 0.183420, 11.189775, -3.693578, 4.221244, 9.665753, -2.591838, 3.540412, 0.240105, -8.962543, 0.575863, 1.044943, -9.141250, -1.246308, -8.864514, 6.251542, 1.875130, -8.735852, 8.157282, 1.282172, -9.732181, 4.710372, 0.941343, -5.316808, 5.346671, 1.328840, -7.201322, 5.817655, 0.852616, -6.969355, 8.757685, 2.002597, -5.052598, 9.232308, 1.685147, -10.212317, 10.201171, -0.612693, -8.928578, 10.114470, 0.918480, -1.060849, 5.208689, 1.357853, 0.308861, 5.613111, 2.757973, -1.075000, 5.751388, -0.567057, -0.253025, 4.021375, -1.142740, -3.377661, 5.562436, 3.342318, -2.314340, 4.112841, 2.465950, -5.970988, 5.047156, -1.298219, -5.273189, 3.628005, -0.073847, -4.030825, 3.822539, 1.481367, -3.126646, -14.718781, -6.370821, -3.336624, -15.911931, -4.779500, -4.828164, -12.135728, -5.731589, -3.721381, -11.820348, -7.367306, -4.545673, -11.434608, -3.879934, -2.197195, -13.032529, -6.911812, -0.998573, -9.687873, -5.965328, -1.987809, -8.058442, -5.360044, -2.164439, -7.910609, -8.875383, -1.257186, -7.508889, -7.138861, -1.272729, -10.431705, -7.801506, -0.543833, -12.293704, -7.760655, -1.640402, -7.176370, -10.660398, -4.383595, -4.705949, -3.012371, -3.663079, -6.502570, -2.509365, -2.311150, -7.805171, -1.452906, -1.256305, -6.845490, -0.050651, -2.250354, -7.570956, -3.438215, -5.456369, -5.816705, -4.283346, -4.878307, -15.496701, -6.942243, -0.552877, -17.577950, 0.008364, 0.189493, -16.927700, 1.747923, 0.937788, -14.188067, -1.174223, 0.861116, -12.785125, -2.597557, 1.244249, -14.455119, 0.784032, 2.833199, -13.464568, 0.081148, -0.221441, -14.991487, 2.034657, -1.131078, -12.925971, -2.491109, 4.009218, -14.982114, -0.479234, 5.564094, -14.644542, -1.691013, -3.145387, -13.399182, 0.264053, -1.355115, -12.946044, -0.503797, -4.013848, -14.934554, 1.206608, -2.738651, -15.922336, 0.024169, -6.909004, -15.684735, -0.757439, -7.107459, -14.953906, -2.608522, -6.167473, -13.942424, -0.113636, -5.983214, -15.205661, 1.425936, -5.263436, -15.812198, -4.252769, -7.157816, -16.397881, -3.991421, -6.993089, -20.749481, -3.291241, -6.177739, -20.545391, -5.106055, -8.282816, -19.537605, -2.359597, -4.882554, -17.485018, -3.224855, -4.975591, -19.141996, -4.340994, -6.324211, -19.777241, -6.946840 }; #endif //AGGREGATE_H

2. Copy the driver program source code, tutorial_03.cpp, as defined below, into your project. In this program, we use the aggregate file to initialize the geometry and run the simulation with three force models: frictional contact, Van der Waals attraction, and central attraction.

   #include <vector> #include <iostream> #include <cmath> #include <sstream> #include <fstream> // Using Eigen for linear algebra #include <Eigen/Eigen> #include <libgran/contact_force/contact_force.h> #include <libgran/hamaker_force/hamaker_force.h> #include <libgran/granular_system/granular_system.h> #include "central_attraction.h" // Include your custom model // Include the fractal aggregate used as initial conditions #include "aggregate.h" using contact_force_functor_t = contact_force_functor<Eigen::Vector3d, double>; // Contact force using vdw_force_functor_t = hamaker_functor<Eigen::Vector3d, double>; // Van der Waals force using central_force_functor_t = central_attraction_functor<Eigen::Vector3d, double>; // Your custom model using binary_force_container_t = binary_force_functor_container<Eigen::Vector3d, double, contact_force_functor_t, vdw_force_functor_t>; // Binary force container using unary_force_container_t = unary_force_functor_container<Eigen::Vector3d, double, central_force_functor_t>; // Unary force container (empty) using granular_system_t = granular_system<Eigen::Vector3d, double, rotational_velocity_verlet_half, rotational_step_handler, binary_force_container_t, unary_force_container_t>; // Granular system representation void dump_particle_positions(std::string const & dir, size_t count, std::vector<Eigen::Vector3d> const & x, double r_part) { std::stringstream out_file_name; out_file_name << dir << "/particles_" << count << ".csv"; std::ofstream ofs(out_file_name.str()); if (!ofs.good()) { std::cerr << "Unable to create a dump file at " << out_file_name.str() << std::endl; exit(EXIT_FAILURE); } ofs << "x, y, z\n"; for (auto const & point : x) { ofs << point[0] / r_part << ", " << point[1] / r_part << ", " << point[2] / r_part << "\n"; } } int main() { // General simulation parameters const double dt = 1e-13; const double t_tot = 1.0e-7; const auto n_steps = size_t(t_tot / dt); const size_t n_dumps = 300; const size_t dump_period = n_steps / n_dumps; const size_t n_thermo_dumps = 10000; const size_t thermo_dump_period = n_steps / n_thermo_dumps; // General parameters const double rho = 1700.0; const double r_part = 1.4e-8; const double mass = 4.0 / 3.0 * M_PI * pow(r_part, 3.0) * rho; const double inertia = 2.0 / 5.0 * mass * pow(r_part, 2.0); // Parameters for the contact model const double k = 10000.0; const double gamma_n = 5.0e-9; const double mu = 1.0; const double phi = 1.0; const double mu_o = 0.1; const double gamma_t = 0.2 * gamma_n; const double gamma_r = 0.05 * gamma_n; const double gamma_o = 0.05 * gamma_n; // Parameters for the Van der Waals model const double A = 1.0e-20; const double h0 = 1.0e-9; // Parameter for your custom model const double k_attr = 8.0e-6; // Declare the initial condition buffers std::vector<Eigen::Vector3d> x0, v0, theta0, omega0; // Copy the particle coordinates into the initial position buffer x0.resize(std::size(aggregate)); std::transform(std::begin(aggregate), std::end(aggregate), x0.begin(), [r_part] (auto const & particle) -> Eigen::Vector3d { return Eigen::Vector3d{particle[0], particle[1], particle[2]} * r_part; }); // Fill the remaining buffers with zeros v0.resize(x0.size()); theta0.resize(x0.size()); omega0.resize(x0.size()); std::fill(v0.begin(), v0.end(), Eigen::Vector3d::Zero()); std::fill(theta0.begin(), theta0.end(), Eigen::Vector3d::Zero()); std::fill(omega0.begin(), omega0.end(), Eigen::Vector3d::Zero()); // Create an instance of contact force model contact_force_functor_t contact_force_model(x0.size(), k, gamma_n, k, gamma_t, mu, phi, k, gamma_r, mu_o, phi, k, gamma_o, mu_o, phi, r_part, mass, inertia, dt, Eigen::Vector3d::Zero(), 0.0); // Create an instance of Hamaker model vdw_force_functor_t hamaker_model(A, h0, r_part, mass, Eigen::Vector3d::Zero(), 0.0); // Create an isntance of your custom model central_force_functor_t central_model(r_part, k_attr, mass, Eigen::Vector3d::Zero()); // Create an instance of binary force container binary_force_container_t binary_force_functors{contact_force_model, hamaker_model}; // Create an instance of unary force container (empty) unary_force_container_t unary_force_functors{central_model}; // Create an instance of step_handler rotational_step_handler<std::vector<Eigen::Vector3d>, Eigen::Vector3d> step_handler_instance; granular_system_t system(x0, v0, theta0, omega0, 0.0, Eigen::Vector3d::Zero(), 0.0, step_handler_instance, binary_force_functors, unary_force_functors); for (size_t n = 0; n < n_steps; n ++) { if (n % dump_period == 0) { std::cout << "Dump " << n / dump_period << " out of " << n_dumps << std::endl; dump_particle_positions("run", n / dump_period, system.get_x(), r_part); } central_model.update_center_of_mass(x0); system.do_step(dt); } return 0; }

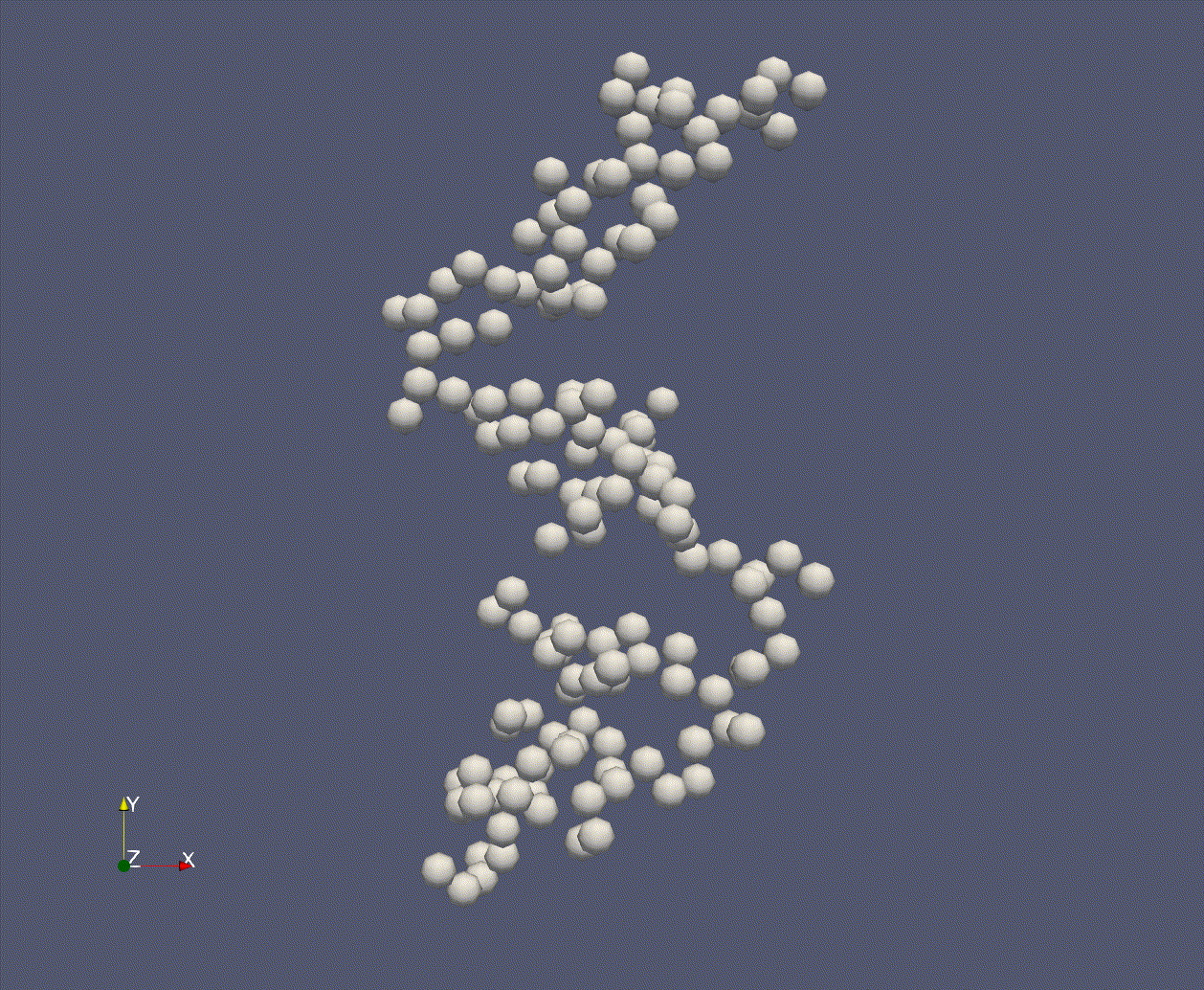

3. Create a directory named run in the same folder as the executable and run the simulation. Set up a visualization, as shown in the example simulation tutorial. You should see a fractal aggregate that undergoes compaction due to the central attractive force:

What you've learned

You have learned how to:

• Implement a custom force model for independent forces acting on particles

• Use the custom model in combination with built-in force models

Complete source file
